28.00m Stern Trawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
28.00m
Length B.P.

23.50m

Length Reg.
23.95m
Breadth Mld.
8.60m
Depth (Main Deck)
4.20m
Depth (Upper Deck)
6.52m
Main Engine
850hp @ 1200rpm
Propeller
2800mm In Steering Nozzle
Bollard Pull
18 Tonnes

DECK MACHINERY
CAPACITIES
Unloading Crane
3 x Spilt Trawl Winches

Crane

Gilson Winch
Power Block
Anchor Windlass
2 x Split Net Drums
Oil Fuel
40,000 litres
Fresh Water
15,000 litres
Fish Hold
160 cu.m
Crew
7 men

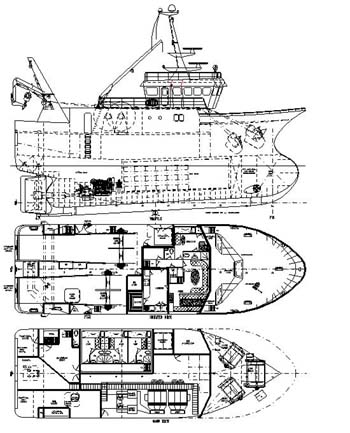

Illustration
