40.00m Freight Ferry

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
40.00m
Length B.P.

35.80m

Breadth Mld.
10.00m
Depth Mld.
4.20m
Main Engines
2 x 600hp @ 1600rpm
Propellerx
2 x 1800mm


      DECK MACHINERY
CAPACITIES
Unloading Crane
Double Windlass
Rescue Boat Davit
Oil Fuel
42,000 litres
Fresh Water
15,000 litres
Water Ballast
55,000 litres
Deadweight
100 Tonnes
Hold Capacity
290 cu.m
Crew
4 men
Passengers
12

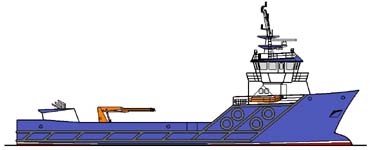

Illustration
