Macduff Ship Design Ltd use the latest in Computer Aided Design (CAD) software packages to produce all their construction, outfit  and concept drawings for new builds and conversions.

The electronic images can be e-mailed in a variety of formats so minimal time is lost forwarding information to shipyards or owners. Concept designs can be developed into 3-dimensional drawings which can then be used to produce both photo realistic images or video which can add a new dimension to visualisation of the vessel and pre-completion marketing.

This approach ensures high levels of accuracy and clarity in all the drawings produced and allows for structural drawings to be developed into detailed designs then onto CNC cutting data.

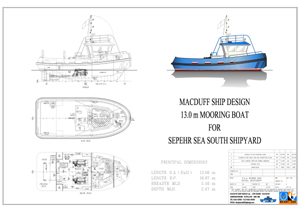

General Arrangement

Click image to Enlarge

Click here for pdf version (1.35 mb)

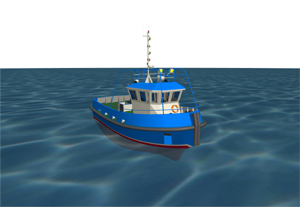

3d Model Developed from 2d General Arrangement

Click image to Enlarge

Click here for 3d pdf (Required Adobe Reader 8.0 or higher)

(3.9 mb - opens in new window)

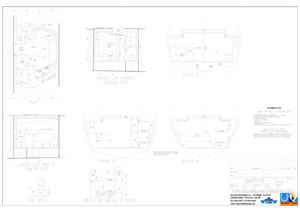

Accommodation Layout

Click image to Enlarge

Click here for pdf version

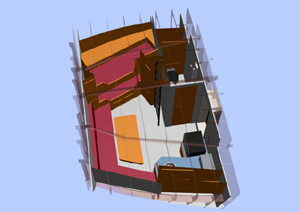

3d Accommodation Layout Developed from plan

Click image to Enlarge

Click here for 3d pdf

(Required Adobe Reader 8.0)

0.25mb - opens in new window

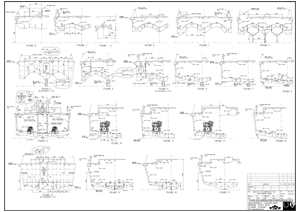

Hull Sections Construction

Click image to Enlagre

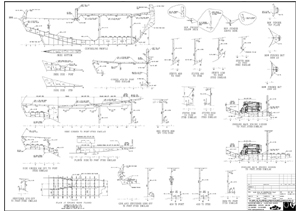

Hull Longitudinal Construction

Click image to Enlarge

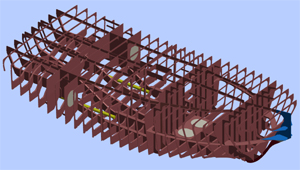

3d Hull Construction

Click image to Enlarge

Click here for 3d pdf

(Required Adobe 8.0)

0.35mb - opens in new window



Standby Vessel Safety Plan
Click image to Enlarge

Click here for pdf version (0.75mb)

FRC Davit Structural Outfit Plan
FRC Davit Structural Outfit Plan

Click image to Enlarge
