22.85m Split Hopper Dredger

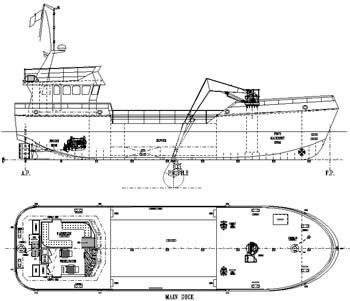

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
22.85m
Length B.P.

21.50m

Breadth Mld.
6.00m
Depth Mld.
2.55m

Main Engines
2 x 400hp @1800rpm
Propeller Diameter
1000mm


CAPACITIES




Oil Fuel
5,000 litres
Fresh Water
1000 litres

Crew

2 men
Hopper Capacity
80 cu.m
Illustration
