16.00m Plough Dredger

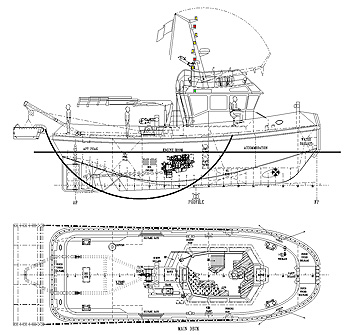

16m Plough Dredger GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
16.00m
Length B.P.

14.65m

Breadth Mld.
5.40m
Depth Mld.
2.90m

Main Engines
2 x 400hp @1800rpm
Propeller Diameter
2 x 1400mm in nozzle
Bollard Pull
10 Tonne

DECK MACHINERY
CAPACITIES



'A' Frame
Plough Dredge



Tow Hook
Winch

Oil Fuel
9,400 litres
Fresh Water
750 litres

Crew

3 men

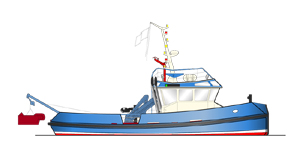

16m Plough Dredger Profile 16m Plough Dregder - Click for 3d pdf


Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 3.2 MB
