60.00m Backhoe Dredger

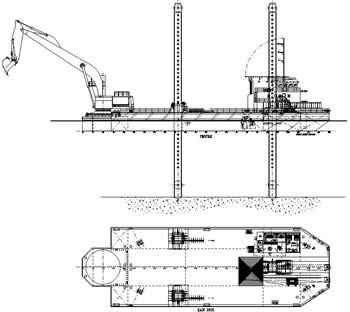

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
60.00m
Length B.P.

60.00m

Breadth Mld.
19.00m
Depth Mld.
4.50m

Main Engines
n/a
Propulsion
n/a


CAPACITIES



Oil Fuel
170,000 litres
Fresh Water
65'000 litres
Ballast Tanks
440,000 litres
Excavator
Leibherr P966
Spud Legs
3 x 340 tonne

Crew

8 men
Illustration
