16.20m River Tourist Vessel

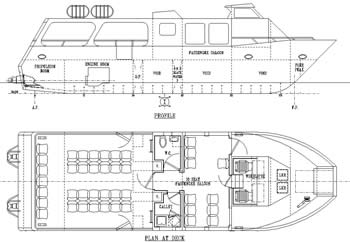

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
16.20m
Length B.P.

13.20m

Breadth Mld.
5.00m
Depth Mld.
1.70m

Main Engines
2 x 200hp @1800rpm
Propulsion Waterjets


CAPACITIES
Oil Fuel
5,000 litres
Fresh Water
1000 litres

Crew

2 men
Passengers
40 persons
Illustration
