15.00m Passenger Vessel

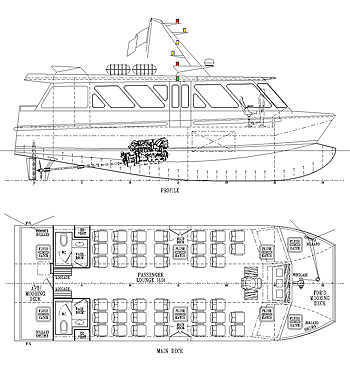

15.00m Passenger Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
15.00m
Length B.P.

13.18m

Breadth Mld.
5.40m
Depth Mld.
2.50m

Main Engines
2 x 600hp @ 2100rpm
Propeller Diameter
 2 x 900mm


DECK MACHINERY
CAPACITIES
Windlass





Oil Fuel
3,600 litres
Fresh Water
500 litres

Crew

3
Passengers
40

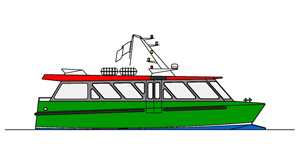

15.00m Passenger Vessel Profile
