19.00m Catamaran Ferry

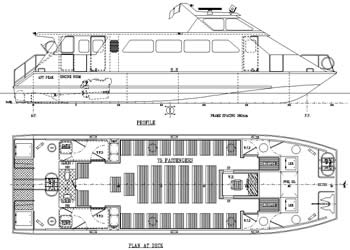

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
19.00m
Length B.P.

16.04m

Breadth Mld.
5.85m
Depth Mld.
1.85m

Main Engines
2 x 200hp @1800rpm
Propulsion Waterjets


CAPACITIES



Oil Fuel
5,000 litres
Fresh Water
1000 litres

Crew

3 men
Passengers
75 persons
Illustration
