20.00m Class VI/VIA Ferry

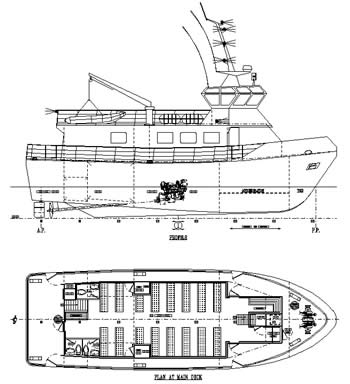

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.

17.70m

Breadth Mld.
6.50m
Depth Mld.
3.00m

Main Engines
2 x 400hp @1800rpm
Propeller Diameter
1400mm


CAPACITIES
Oil Fuel
15,000 litres
Fresh Water
1000 litres
Sewage Holding Tank
3000 litres

Crew

3 men
Passengers
60 persons
Illustration
