35.50m Inter Island Ferry

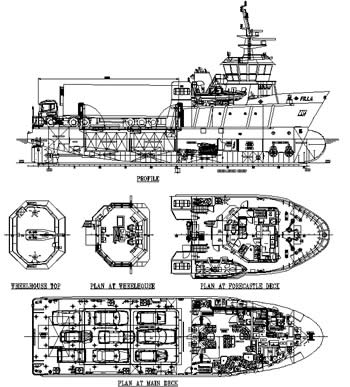

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
35.50m
Length B.P.

30.30m

Breadth Mld.
9.00m
Depth Mld.
4.20m

Main Engines
2 x 900hp @1600rpm
Propeller Diameter
1750mm


CAPACITIES


Oil Fuel
22,000 litres
Fresh Water
14000 litres
Water Ballast
56000 litres
Deadweight
170 Tonnes
Hold Capacity
140 cu.m

Crew

5 men
Passengers
30 persons

Illustration Filla
