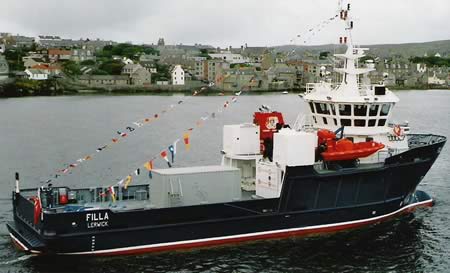

Filla

Jun 7, 2018

Filla

Length Overall: 35.50m

Vessel Type: Ferry, Other Sectors

Design Search

Download Data Sheet

Principle Dimensions

Length Overall: 35.50 m Length Reg: 30.30 m Breadth Mld: 9.00 m Depth mld: 4.20 m

Capacities

Oil Fuel: 22600 Litres Fresh Water: 15800 Litres Water Ballast: 70800 Litres Ships Complement Passengers: 30

Propulsion Machinery

Main Engine Power : 671 Kw @ 1600rpm Propeller Diameter: 1750 mm Drive Type: Conventional Bow Thruster: Yes Bow Thruster Power: 150 kw

Deck Machinery

Hydraulic Cargo Hatchesa
FRC and Davit
MES by LSA
Stern Ramp

Deck Crane 39 T/m Capstans Rapp Windlass Rapp

Auxilliary Equipment

2x Mitsubishi 190 kw
1x Mitsubishi 114 kw

Video

Other Images
