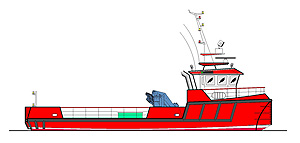

20.00m Cargo Vessel

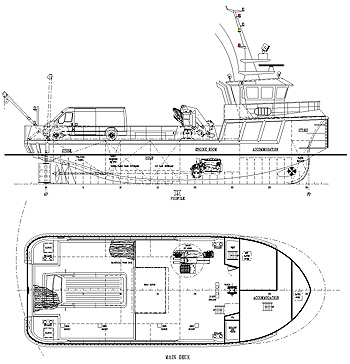

20.00m Cargo Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.

17.65m

Breadth Mld.
7.20m
Depth Mld.
2.90m

Main Engines
2 x 480hp @ 1800rpm
Propeller Diameter
2 x 1200mm
Bollard Pull
7.5 Tonne

DECK MACHINERY
CAPACITIES
10 T Winch
Deck Crane

Oil Fuel
13,600 litres
Fresh Water
1000 litres
Water Ballast
14,000 litres
Cargo O.F.
19.000 litres
Cargo Kerosene
5,400 litres
Deck Cargo
3 containers & 1 van
Free Deck Space
90 sq.m
20.00m Cargo Vessel
