24.80m Medical Vessel

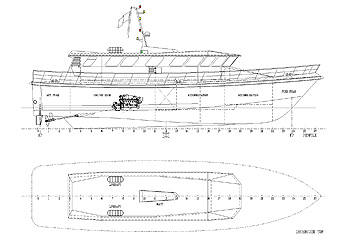

24,8m Medical Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
24.80m
Length B.P.

21.27m

Breadth Mld.
6.00m
Depth Mld.
3.12m
Main Engines
2x 1300 hp
Speed
28 Knots

DECK MACHINERY
CAPACITIES




Oil Fuel
8000 Litres
Fresh Water
1000 Litres
Crew
3
Passengers
12

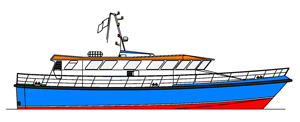

24.8m Medical Vessel Profile
