120.00m Clean Products Tanker

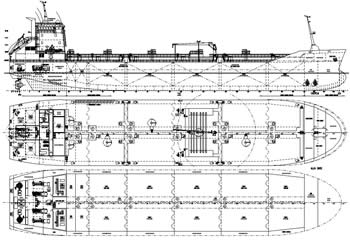

Technical Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
120.00m
Length B.P.

114.10m

Breadth Mld.
23.50m
Depth Mld.
10.20m
Main Engines
2 x 1600kW @ 1200rpm
Propeller
2 x 2600mm Aquamaster

CAPACITIES




Oil Fuel
500 cu.m
Freshwater
101 cu.m
Slop Tanks
650 cu.m
Cargo Tanks
12500 cu.m
Ballast
7240 cu.m
Accomodation
12 men
Illustration
