15.00m Catamaran Survey Vessel

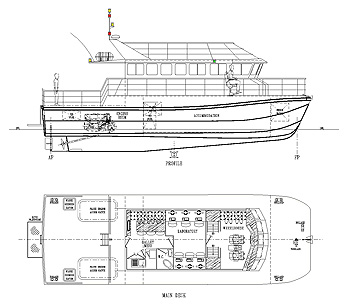

15.00m Catamaran Survey Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
15.00m
Length B.P.

13.75m

Breadth Mld.
5.00m
Depth Mld.
2.30m
Main Engine
2x 500 hp
Propeller
600mm
Speed
16 Knots

DECK MACHINERY
CAPACITIES
Dive Platform

Anchor Windlass



Oil Fuel
4,000 litres
Fresh Water
2,000 litres
Crew
2 person
Scientists
6 person

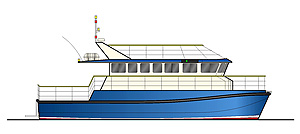

15.00 Catamaran Survey Vessel Profile
