18.00m Research Vessel

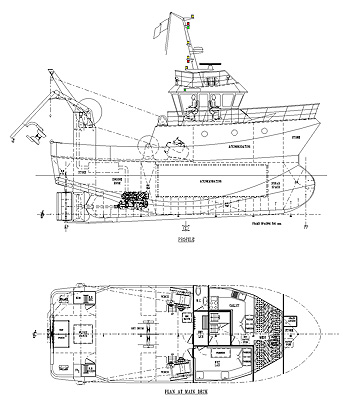

18.00m Research Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
18.00m
Length B.P.

16.00m

Breadth Mld.
6.50m
Depth Mld.
3.50m
Main Engine
700 hp
Propeller
1600mm In Nozzle
Bollard Pull
8 Tonne

DECK MACHINERY
CAPACITIES
Deck Crane
Gilson Winch

2x Split Winches

Slip Ring Winch
2x Net Drums
Anchor Windlass
Oil Fuel
20,000 litres
Fresh Water
10,000 litres
Crew
7 person
Scientist
5 person

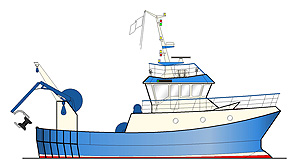

18.00m Research Vessel Profile
