22.00m Research Vessel

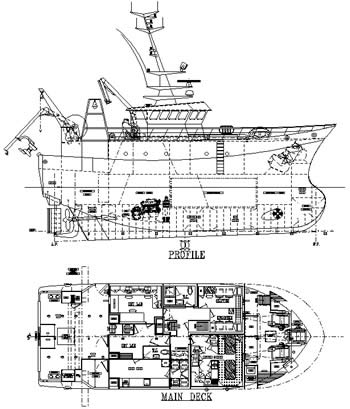

Tech Drawing

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
22.00m
Length B.P.

19.30m

Breadth Mld.
7.80m
Depth Mld.
4.20m

Main Engine
2 x 350hp @ 1600rpm
Propeller Diameter
2 x 1600mm


DECK MACHINERY
CAPACITIES
2 x Cranes
3 x Split Winches
2 x Auxiliary Winches
Split Net Drum
2 x Slip Ring Winches
Gilson Winch
Anchor Windlass
Oil Fuel
29,000 litres
Fresh Water
6,000 litres

Crew

9 men



Illustration Aora
