22.00m Research Vessel

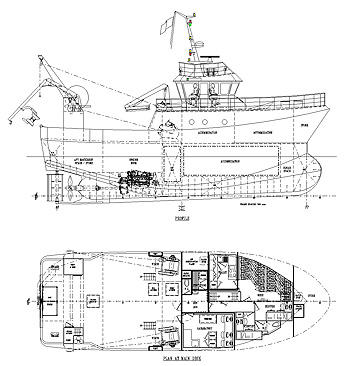

22.00m Research Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
22.00m
Length B.P.

19.00m

Breadth Mld.
7.50m
Depth Mld.
4.00m
Main Engine
750hp
Propeller
1800mm
Bollard Pull
8 Tonne

DECK MACHINERY
CAPACITIES
2x Cranes
Gilson Winch

2x Spilt Winches

Slip Ring Winch
Net Drum
Anchor Windlass
Oil Fuel
40,000 litres
Fresh Water
15,000 litres
Crew
7 person
Scientists
5 person

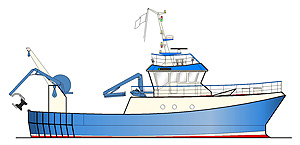

22.00m Research Vessel Profile
