24.00m Research Vessel

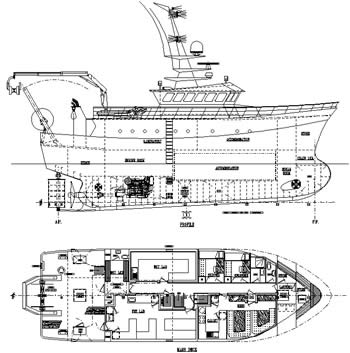

Tech Drawing

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
24.00m
Length B.P.

20.78m

Breadth Mld.
7.50m
Depth Mld.
4.25m

Main Engine
800hp @ 1800rpm
Propeller Diameter
2000mm


DECK MACHINERY
CAPACITIES
2 x Cranes
3 x Split Winches
2 x Auxiliary Winches
Split Net Drum
Retractable Bow Thruster
Anchor Windlass

Oil Fuel
29,000 litres
Fresh Water
6,000 litres

Crew

10 men



Illustration
