40.70m Stern Trawler

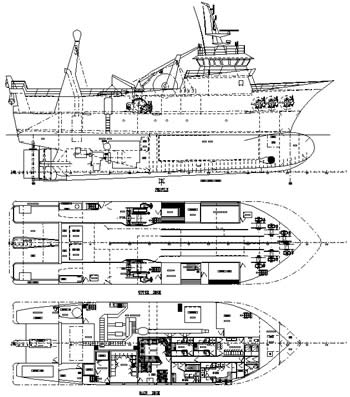

Tech Drawing

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
40.70m
Length B.P.
32.60m
Breadth Mld.
10.50m
Depth Mld.
4.90m

Main Engine
3000hp @ 1000rpm
Propeller Diameter
3700mm in Nozzle
Bollard Pull
43 tonne




DECK MACHINERY
CAPACITIES
3 x Split Winches
2 x Gilson Winches
1 x Split Drum
Anchor Windlass
6 x Sweep Winches
4 x Bagging Winches

Oil Fuel
127,000 litres
Fresh Water
38,000 litres
Freezer Hold
340 cu.m

Crew

14 men
LICENCE REQUIREMENTS
Tonnage
611GT






Illustration     Avro Warrior
