13.00m Line Handler

MACDUFF "TWEED" 13

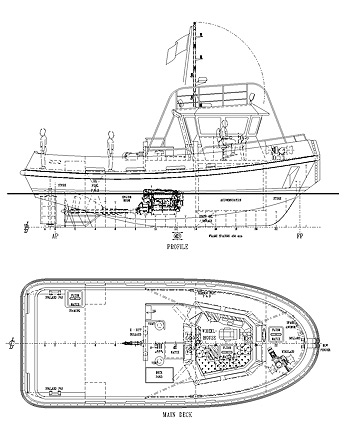

Macduff TWEED 13 GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
13.00m
Length B.P.

10.97m

Breadth Mld.
5.40m
Depth Mld.
2.47m
Main Engines
2 x 405hp @ 1800rpm
Propeller
2 x 1000mm 5 Blade


DECK MACHINERY
CAPACITIES
Towing Hook 15 Tonne

H-Bitt Bollard


Windlass
Oil Fuel
2,470 litres
Fresh Water
365 litres
Crew
3 men

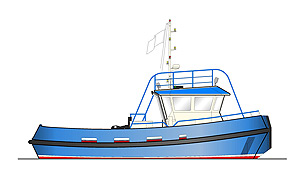

13.00m Line Handler - Macduff TWEED 13
Macduff TWEED 13 - click for 3d pdf

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 3.9 MB
