16.00m DOT Tug

MACDUFF "DEE" 16

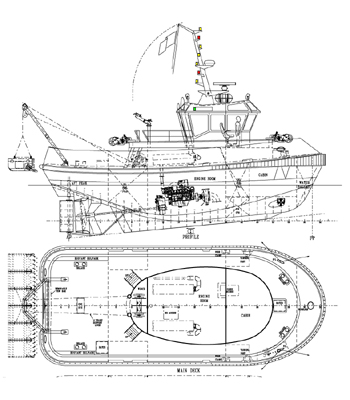

16m DOT Tug - Macduff DEE 16 GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
16.00m
Length B.P.
13.95m
Breadth Mld.
6.50m
Depth Mld.
2.90m

Main Engine
2x Catapillar C32
Propeller Diameter
2x 1800mm in nozzles
Bow Thruster
KORT KT 30 DD


DECK MACHINERY
CAPACITIES
Mampaey DOT System -
Fi-Fi Monitor
HydWindlass
'A' Frame Aft
Deck winch 16 T
Plough dredge


Oil Fuel
12,000 litres
Fresh Water
3000 litres
Water Ballast
4180 litres
Bollard Pull
25 T

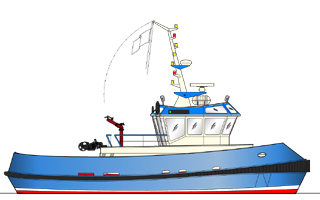

16m DOT Tug - Macduff DEE 16 profile
16m DOT Tug - Macduff DEE 16 3d profile
