30.00m Tug

MACDUFF "TAY" 30

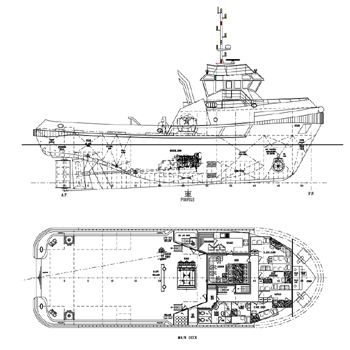

30m General purpose tug - Macduff TAY 30 GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
30.00m
Length B.P.

26.00m

Breadth Mld.
10.00m
Depth Mld.
5.00m

Main Engines
2x Caterpillar 3512C
Propellers
2x 2600mm In Nozzles
Thruster
Kort

DECK MACHINERY
CAPACITIES
Towing Winch

Tugger Winch

Anchor Windlass

Oil Fuel
200,000 litres
Fresh Water
40,000 litres
Water Ballast
45,000 litres
Bollard Pull
50  T

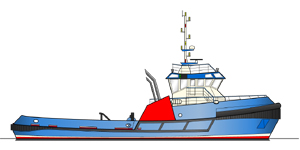

30m General purpose tug - Macduff TAY 30 profile



30m General purpose tug - Macduff TAY 30 3d profile

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 7.4 MB

(opens in new window)
