38.00m Tug

MACDUFF "TAY" 38

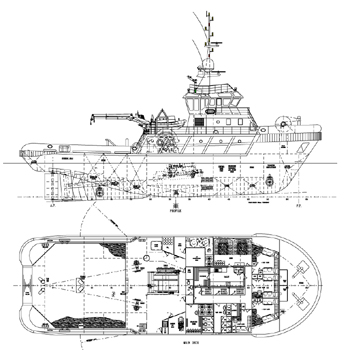

38m General purpose tug - Macduff TAY 38 GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
38.00m
Length B.P.

31.50m

Breadth Mld.
12.50m
Depth Mld.
5.50m

Main Engines
2x Caterpillar 3516B
Propellers
2x 3000mm In Nozzle
Thruster
Kort HRP 4101

DECK MACHINERY
CAPACITIES
Crane
Workboat & Davit

2x Towing Winches

Spare wire reel
2x Tugger Winches
Anchor Windlass
Oil Fuel
160,000 litres
Fresh Water
50,000 litres
Water Ballast
125,000 litres
Oil Recovery
100,000 litres

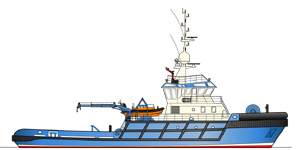

38m General purpose tug - Macduff TAY 38 profile

38m General purpose tug - Macduff TAY 38 3d profile

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 9.6 MB

(opens in new window)
