40.00m Tug

MACDUFF "TAY" 40

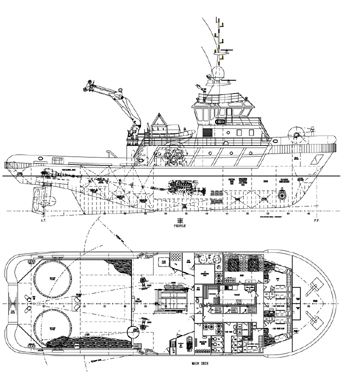

40m General purpose tug - Macduff TAY 40 GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
40.00m
Length B.P.

33.59m

Breadth Mld.
12.50m
Depth Mld.
5.50m

Main Engines
2x Caterpillar 3516C
Propellers
Azimuthing units
Thruster
Kort HRP 4101

DECK MACHINERY
CAPACITIES
Deck Crane
Workboat & Davit

2x Towing Winches

2x Tugger Winch
Anchor Windlass
Oil Fuel
200,000 litres
Fresh Water
50,000 litres
Water Ballast
125,000 litres
Oil Recovery
200,000 litres

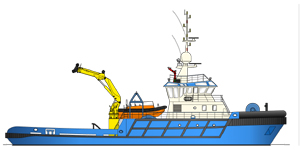

40m General purpose tug - Macduff TAY 40 profile

40m General purpose tug - Macduff TAY 40 3d profile

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 8 MB
