12.00m River Tug

MACDUFF "SPEY" 12

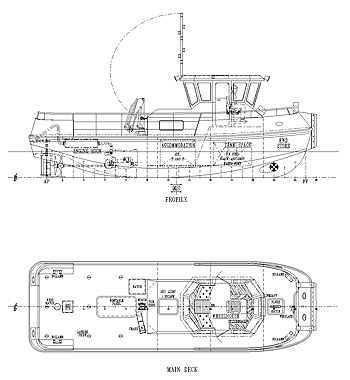

Macduff SPEY 12 GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
12.00m
Length B.P.

11.025m

Breadth Mld.
3.80m
Depth Mld.
1.75m
Main Engines
2 x 190hp
Propellers
2 x 800 mm


DECK MACHINERY
CAPACITIES
Tow Hook
Deck Crane

Winch


Oil Fuel
4,000 litres
Fresh Water
500 litres
Crew
2-6 men

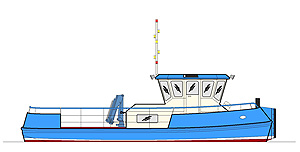

   12.00m River tug - Macduff SPEY 12
