24.50m Twin RigTrawler

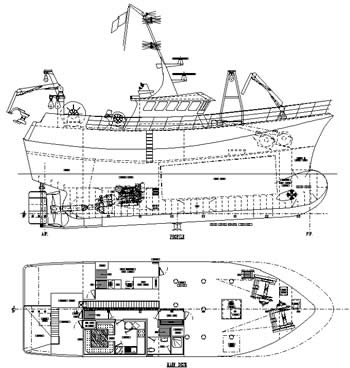

Tech Drawing

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
24.50m
Length B.P.

20.90m

Breadth Mld.
7.50m
Depth Mld.
4.11m

Main Engine
999hp @ 1800rpm
Propeller Diameter
2300mm in Nozzle
Bollard Pull
15 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
Unloading Winch
2 x Split Net Drums
2 x Gilson Winches
Power Block & Crane

Oil Fuel
30,000 litres
Fresh Water
4,500 litres
Fish Room
150 cu.m

Crew

8 men
LICENCE REQUIREMENTS
Tonnage
230 GRT



Illustration Glor Na Dtonn
