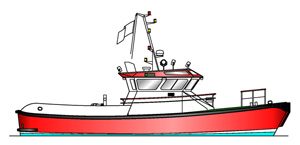

15.50m Workboat

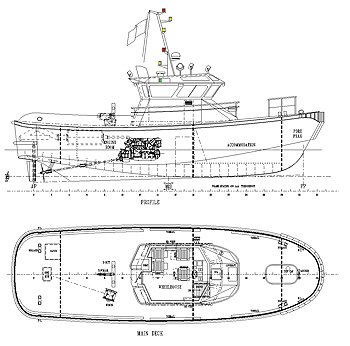

15.50m Workboat GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
15.90m
Length B.P.

13.70m

Breadth Mld.
4.75m
Depth Mld.
2.56m

Main Engines
2 x 500hp
Propeller Diameter
2 x 1100mm


DECK MACHINERY
CAPACITIES
H-Bitt Bollard
Winch
Gog Eye
Oil Fuel
2,000 litres
Fresh Water
350 litres
Crew
2 man
15.50m Workboat
