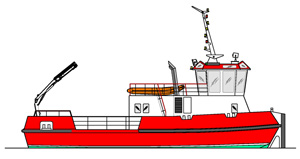

20.00m Workboat

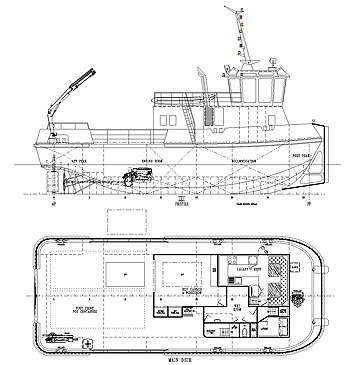

20.00m Workboat GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.

17.90m

Breadth Mld.
8.00m
Depth Mld.
3.50m

Main Engines
2 x 270hp @ 1800rpm
Propeller Diameter
2 x 1200mm 4 blade


DECK MACHINERY
CAPACITIES
12.5 T/M Deck Crane


Oil Fuel
30,000 litres
Fresh Water
10,000 litres
Water Ballast
10,000 litres
Crew
5 men
20.00m Workboat
