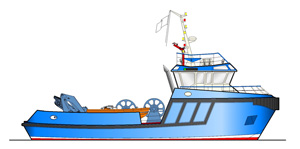

20.00m Oil Spill Vessel

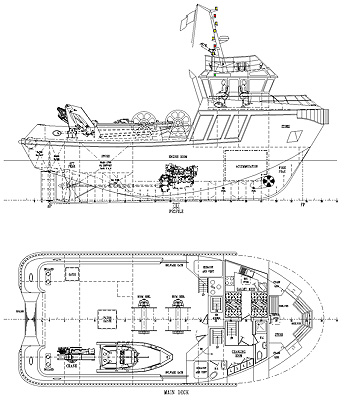

20.00m Oil Spill Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.

16.75m

Breadth Mld.
8.50m
Depth Mld.
3.90m

Main Engines
2 x 400hp @ 1800rpm
Propeller Diameter
2 x 1700mm in nozzle
Bollard Pull
11 Tonne

DECK MACHINERY
CAPACITIES
Deck Crane
Hydraulic Reels

Oil Fuel
25,000 litres
Fresh Water
6,000 litres
Crew
4 man
Water Ballast
7,000 litres
Oil Recovery
30,000 litres
