23.95m Salmon Feed Carrier

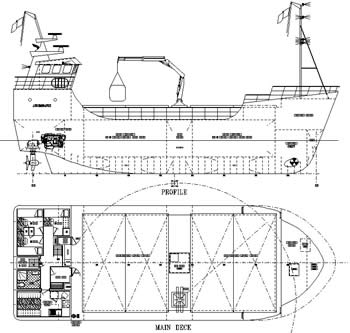

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.95m
Length B.P.

22.30m

Breadth Mld.
7.00m
Depth Mld.
2.40m
Main Engines
2 x 400hp @ 1800rpm
Propulsion
Azimuthing Drives




DECK MACHINERY
CAPACITIES
Loading/Discharging Crane
Anchor Windlass

Oil Fuel
8,000 litres
Fresh Water
2,000 litres
Cargo
150,000 kg
Illustration
