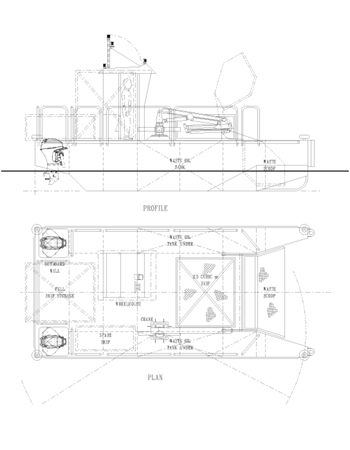

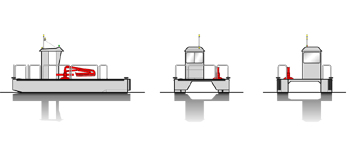

8.00m Waste Collection Vessel


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall:
8.00m
Length Over Hull:
7.00m
Breadth Mld.:
3.80m
Depth Mld.:
1.50m

Main Engine:

2x 20hp Outboard


An alternative drive system can be fitted comprising a Diesel driven hydraulic stern thruster unit.
DECK MACHINERY
CAPACITIES
Deck Crane:
2.15 T/m
Waste Collection Scoop
Skip
Waste Oil Tank:
2x 2.7 cu.m
Crew:
1
