18.45m Multi Mac

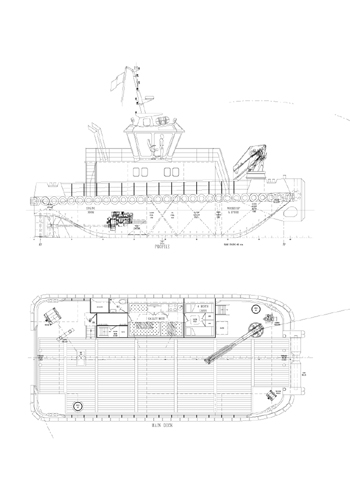

18.45m Macduff Multi Mac - Profiel & Plan
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
19.75m
Lenght Overall (hull)
18.45m
Length B.P.

17.55m

Breadth Mld.
8.60m
Depth Mld.
3.10m

Main Engines
2x 480 hp @ 1800 rpm
Propeller Diameter
2x 1300mm in nozzle


DECK MACHINERY
CAPACITIES
Towing Winch
15 T
Anchor Windlass
Tugger Winch
5 T
Deck Crane
65 T/m
Oil Fuel
50,000 Litres
Fresh Water
15,000 Litres
Water Ballast
40,000 Litres

Crew

4 persons
Deck Cargo
25 Tonnes
Bollard Pull
12 Tonnes

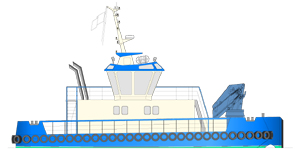

18.45m Macduff Multi Mac - Illustration
