25.50m Multi Mac
25.50m Multi Mac GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall (Hull)
25.50m
Length B.P.

24.00m

Breadth Mld.
13.50m
Depth Mld.
4.05m

Main Engines
3x 1000 hp @ 1800 rpm
Propeller Diameter
3x 1700 in nozzle
Bow & Stern Thrusters
Kort KT 250

DECK MACHINERY
CAPACITIES
Towing Winch
Tow hook
3x Tugger Winches
2x karm fork
2x 240 T/m Deck Crane
2x towing pins
Anchor Windlass
Oil Fuel
151,000 litres
Fresh Water
62,000 litres
Water Ballast
125,000 litres

Deck Cargo

150 T

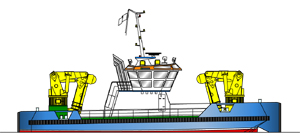

25.50m Multi Mac profile



May take some time to become active

when available press play

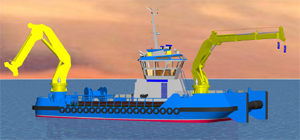

25.50m Multi Mac 3d profile

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 6.2 MB
