28.50m Multi Mac

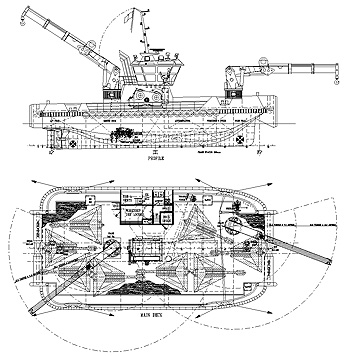

28.50m Multi Mac GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
28.50m
Length B.P.

24.00m

Breadth Mld.
13.50m
Depth Mld.
4.05m

Main Engines
3x 1000 hp @ 1800 rpm
Propeller Diameter
3x 1700mm in nozzles
Bollard Pull
37+ Tonne

DECK MACHINERY
CAPACITIES
101 T Towing Winch
15.6 T Tugger Winch
2x 240 T/m Deck Cranes

Oil Fuel
151,000 litres
Fresh Water
62,000 litres
Water Ballast
125,000 litres

Crew

8 men
Deck Cargo
150 Tonnes

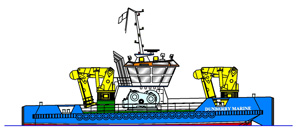

28.50m Multi Mac Profile

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 1.9 MB

(opens in new window)
