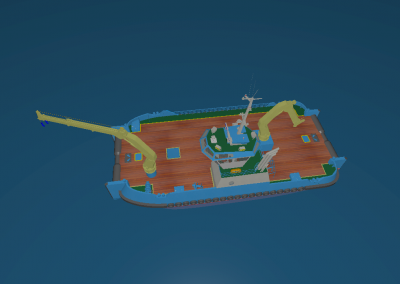

28.50m Multi Mac – Concept Design

May 22, 2018

Concept Design

Length Overall: 28.50m

Vessel Type: Multi Mac

Design Search

Download Data Sheet

Principle Dimensions

Length Overall: 28.50 m Length Reg: 24.00 m Breadth Mld: 13.50 m Depth Mld: 4.05 m

Capacities

Oil Fuel: 151000 Litres Fresh Water: 62000 Litres Fresh Water [cargo]: 125000 Litres Ships Complement Crew: 8

Performance

Bollard Pull: 37 T

Propulsion Machinery

Main Engine Power : 1000 Hp @ 1800rpm Propeller Diameter: 1700 mm Propeller Nozzle: Yes Drive Type: Conventional Bow Thruster: Yes Stern Thruster: Yes

Deck Machinery

Moon Pool

Cranes 2x 240 T/m Main Winch 3x Tugger Winches Anchor Windlass Tow Hook
